Perko switch

General Boats and Motors
1

I want to move my battery from the stern of the boat to under the console and also get a second battery with a Perko 1,2,All switch.

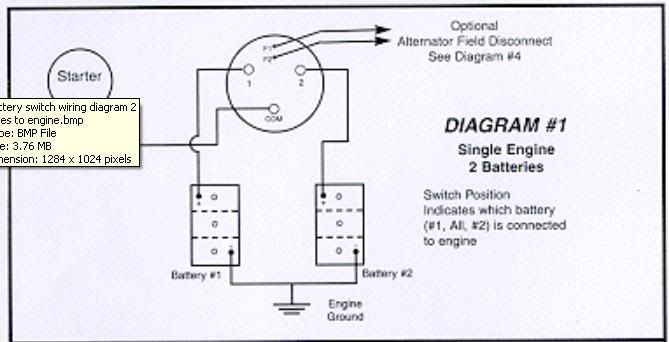

Also, I only want to run one battery cable (dual) back to the engine. I have looked at the Perko wiring diagram. Fairly straight forward.

My question is - What is the best method of combining the ground connection from battery 1, 2 and back to the engine?

thanks

84’ 18 Privateer
08’ Yamaha 90

There are always greater fish than you have caught, always the lure of greater task and achievement, always the inspiration to seek, to endure, to find.

2

put the motor ground on 1 battery, and a jumper wire from one battery to the other.

I’m now at www.teamcharlestonmarine.com

3
quote:
Originally posted by chris V

put the motor ground on 1 battery, and a jumper wire from one battery to the other.

</font id=“quote”></blockquote id=“quote”>

Got it. Thanks. Don’t know what the heck I was thinking. Trying to make it complicated or maybe I just like drilling holes in my console.[:I]

84’ 18 Privateer
08’ Yamaha 90

There are always greater fish than you have caught, always the lure of greater task and achievement, always the inspiration to seek, to endure, to find.
