Ok, so did a little fishing yesterday. One trout. But, this isn’t a report.

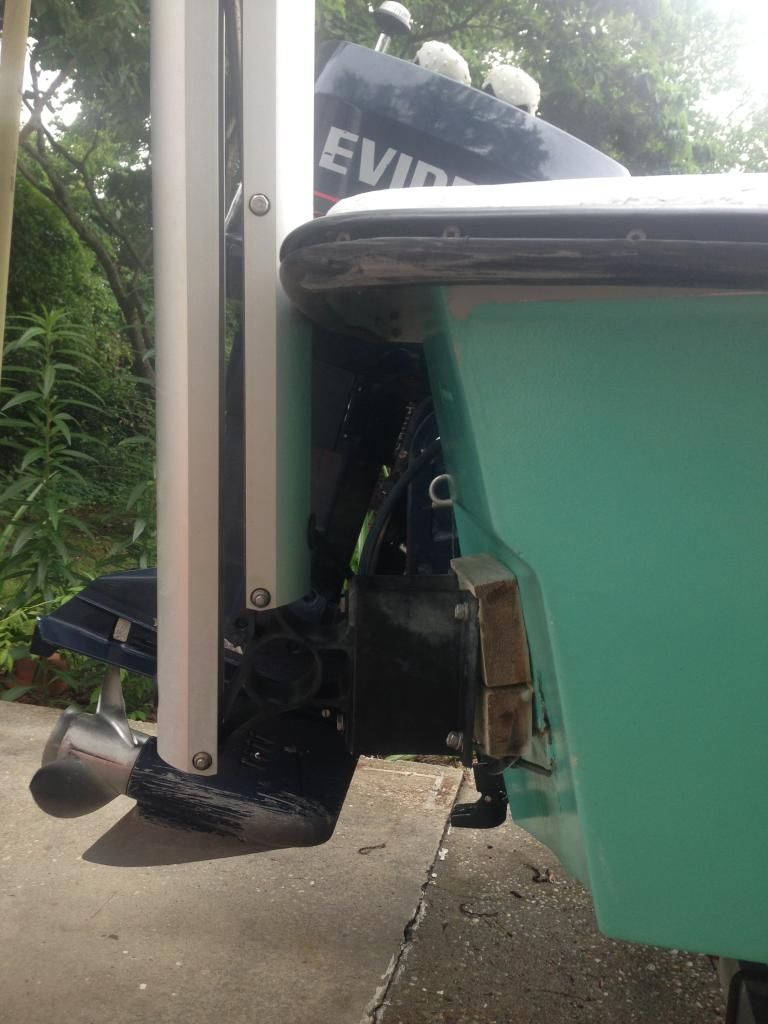

The guy I bought the boat from obviously didn’t think things through when he installed the PP. I’ve been concerned about this for a while, but hey, ain’t broke, don’t fix it. Well… now it’s broke.

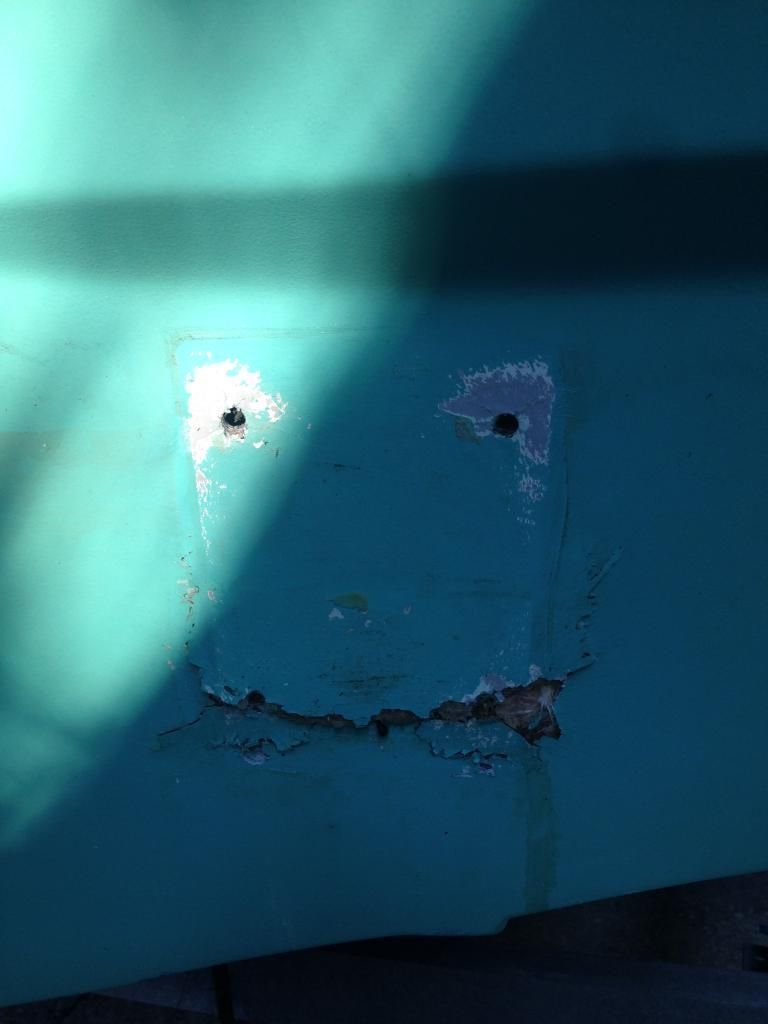

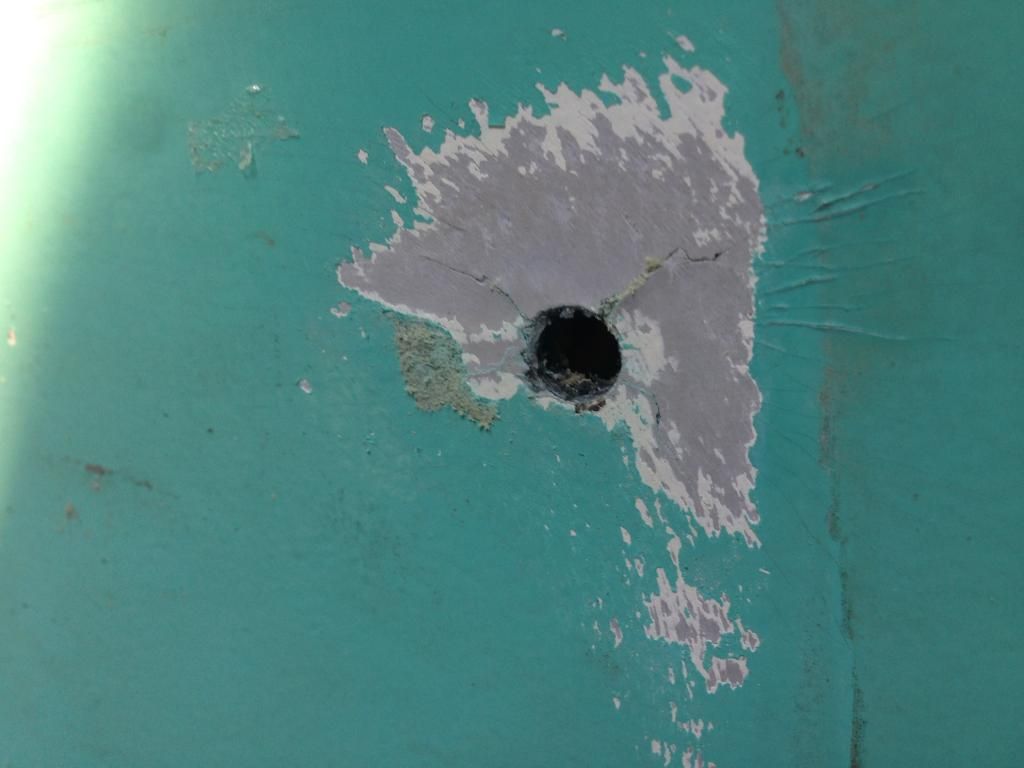

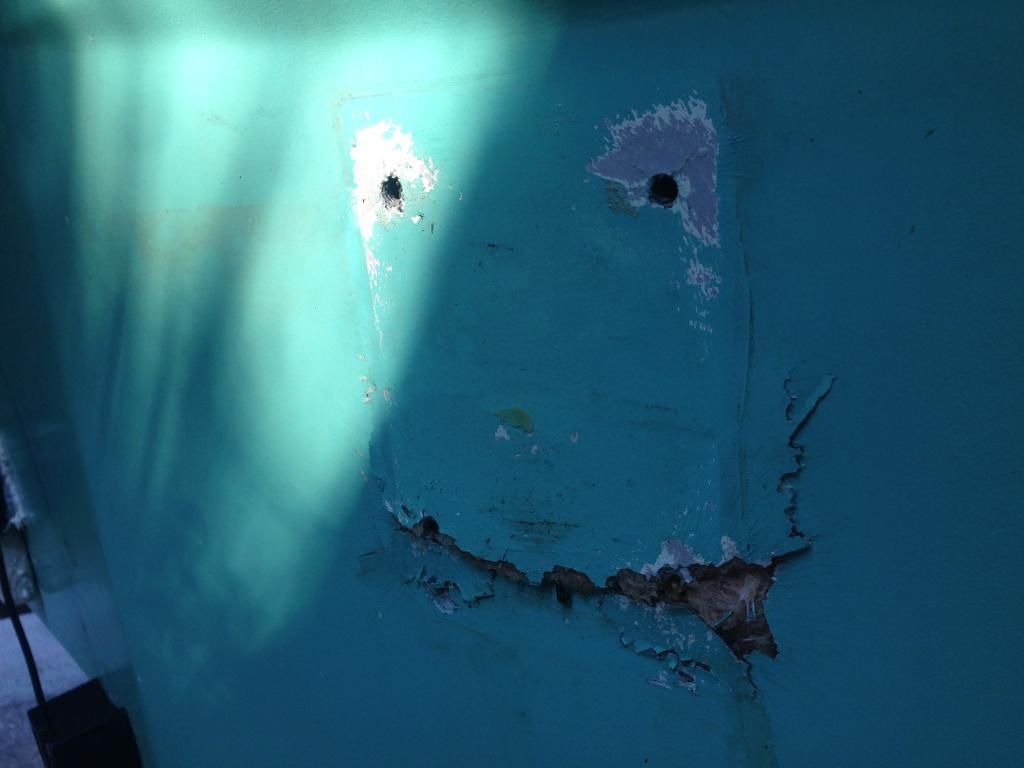

As you can see from the photos, I now have a sizable hole in my transom. I’m thinking doing the repair with starboard and obviously cutting out the damage and new fiberglass. But, I’m a little iffy about messing with the transom, so I’m here hoping CrackerLarry can point me in the right direction. Or maybe even offer to make the 2 hour drive to his place and help me with this (ain’t too proud to beg). The last time I had an issue with this boat, Larry was super helpful and pointed me in the right direction, which I am forever grateful for. However, that job took me about 6 months to finish, which I’m not willing to do again.
It’s an old Malibu, great little fishing boat. But, it isn’t a foam or wood cored hull. Just fiberglass.
So, here’s some photos for you guys to check out and give me some guidance. I do have some 12 oz biax cloth left over from the last job, is that what I would use here? Should I glass the new “standoff” or just drill through and seal? I dream of the things Phin and CrackerLarry do with boat construction, amazing stuff…
Fingers crossed… Thanks guys!
j
17 Malibu CC
88 'rude

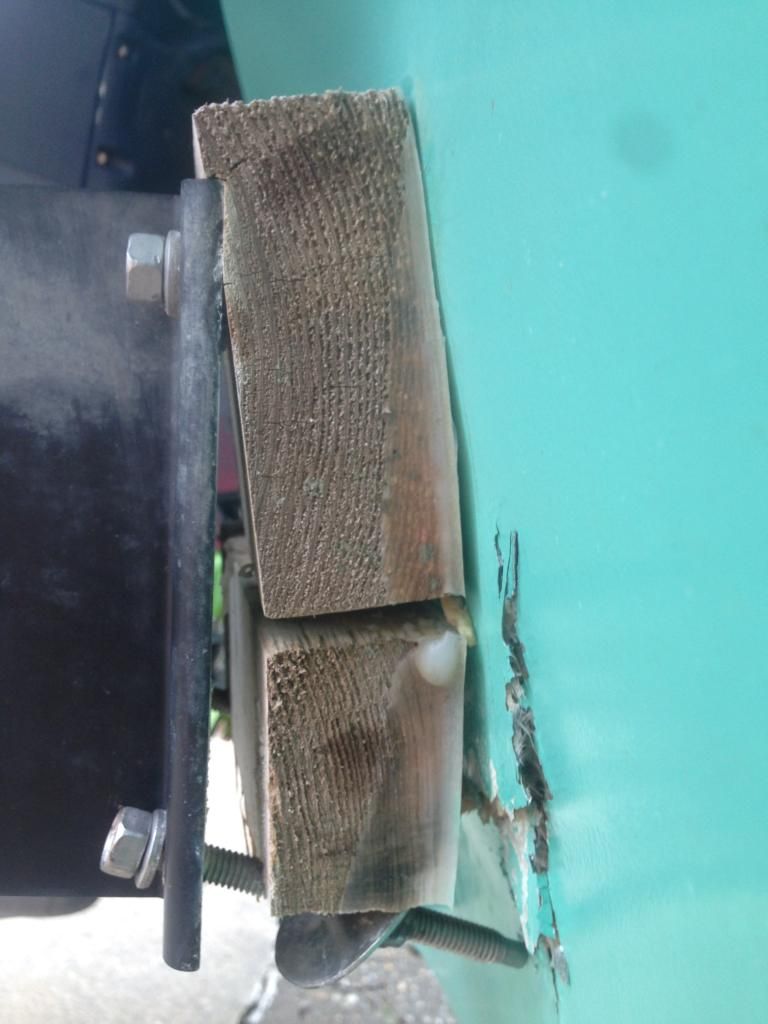

Jeez, wood, really? PP’s aren’t cheap, it doesn’t make and sense to go cheap on a mount. Hopefully Larry and others more knowledgeable will come along with some advice.
“Apathy is the Glove into Which Evil Slips It’s Hand”.
Yeah, no kidding. You should have seen some of the other nonsense that I’ve replaced/fixed.
j
17 Malibu CC
88 'rude
Ouch!! Hopefully you get it fixed right. Good luck!
'06 Mckee Craft
184 Marathon
DF140 Suzuki
Oh man, that ain’t good. Did it pull that fender washer all the way through the transom? That’s got to be one of the worse installs I have ever seen on something as expensive as a power pole. I’ve seen plenty of bad installs on a lot of things, but that’s just ugly.
quote:
so I'm here hoping CrackerLarry can point me in the right direction. Or maybe even offer to make the 2 hour drive to his place and help me with this (ain't too proud to beg)
I’d have to see it in person before I can give you a solid opinion, but I can fix it. The damage is too extensive for me to tell you I can do it for free, which I try to do whenever I can, but I can fix it. Can’t tell you how or how much without looking at it. I’ve fixed a lot worse than that though. If you want to pull it down here, I can work on it in my spare time.
Capt. Larry Teuton
Cracker Built Custom Boats
“Ships are the nearest things to dreams that hands have ever made.” -Robert N. Rose
Larry, you are awesome. When is a good time to call?
j
17 Malibu CC
88 'rude
Give me a half hour to eat supper, or anytime tomorrow 9-9. 912-655-5674
Capt. Larry Teuton
Cracker Built Custom Boats
“Ships are the nearest things to dreams that hands have ever made.” -Robert N. Rose
Goodness. I don’t know the proper way to install a Power Pole, but what happened to yank that huge washer through the fiberglass?
… The Cross of Christ is the anvil upon which the hammer of evil wore itself out.
Ouch! I’m hurting all the way out here just thinking about that.
Key West 2300cc Mercury 225 optimax “Fish Tale”
It’s not so bad from a repair standpoint, at least it’s just a couple of holes

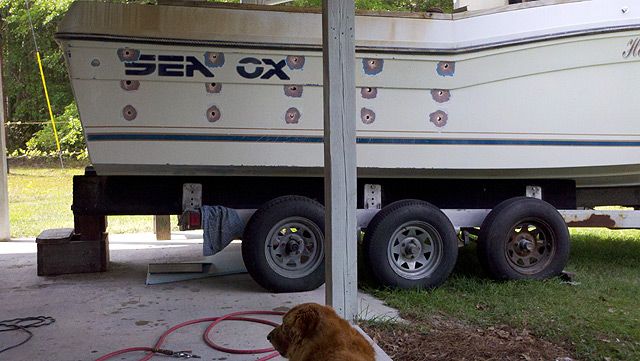

Check out this one I repaired a while back. The boat is a 27 Sea Ox used for offshore commercial crabbing. The owner had bolted a full 4X8 sheet of 1" Starboard to the side of the boat, with 15- 1/2" carriage bolts and 2" fender washers behind them. This was to protect the hull from crab pots being winched over the side.
He got in some bad weather and somehow a wave forced water between the sheet of Starboard and the hull, and ripped off the whole thing[:0] It pulled all 15 -2" fender washers through the side of the boat, each one left a ragged hole about the size of my fist. He said it sounded like a Vulcan mini-gun when it ripped out. I reckon it did!
Nothing but a thing. I can fix it
Capt. Larry Teuton
Cracker Built Custom Boats
“Ships are the nearest things to dreams that hands have ever made.” -Robert N. Rose
Wowza, that’s nasty!
Is there a connection between Sea Ox and Sea Fox? It seems that they are different companies but that font is almost exactly the same.
… The Cross of Christ is the anvil upon which the hammer of evil wore itself out.
quote:
Is there a connection between Sea Ox and Sea Fox?
Not that I know of. They did make a line of smaller boats called River Ox.
Capt. Larry Teuton
Cracker Built Custom Boats
“Ships are the nearest things to dreams that hands have ever made.” -Robert N. Rose

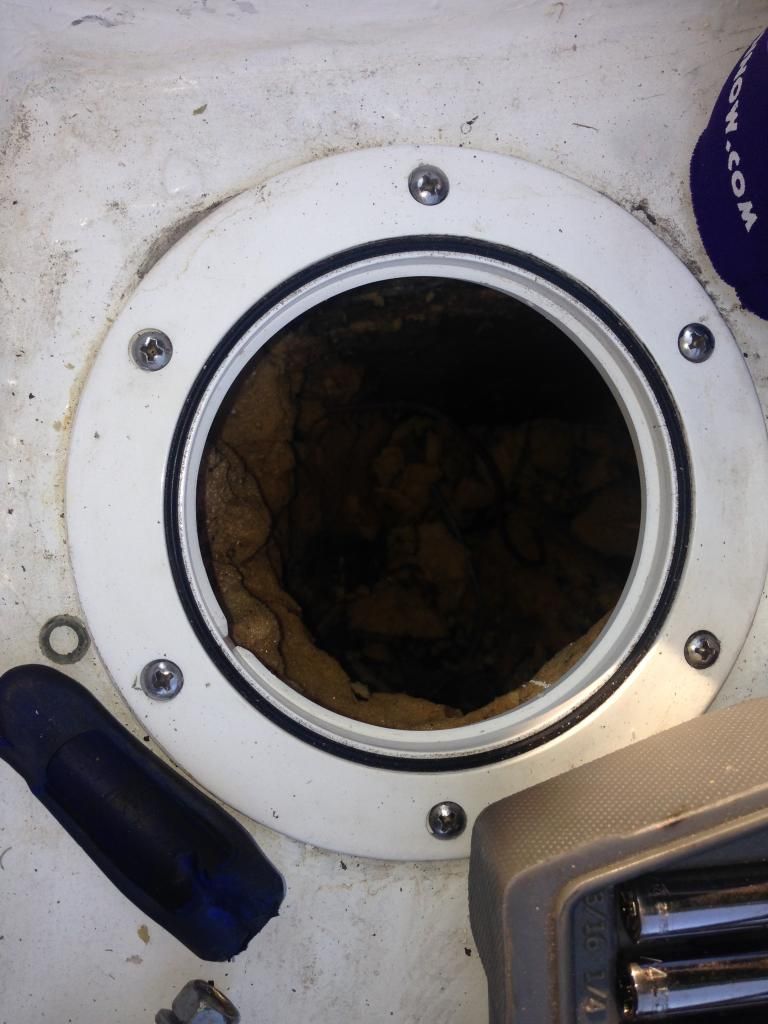

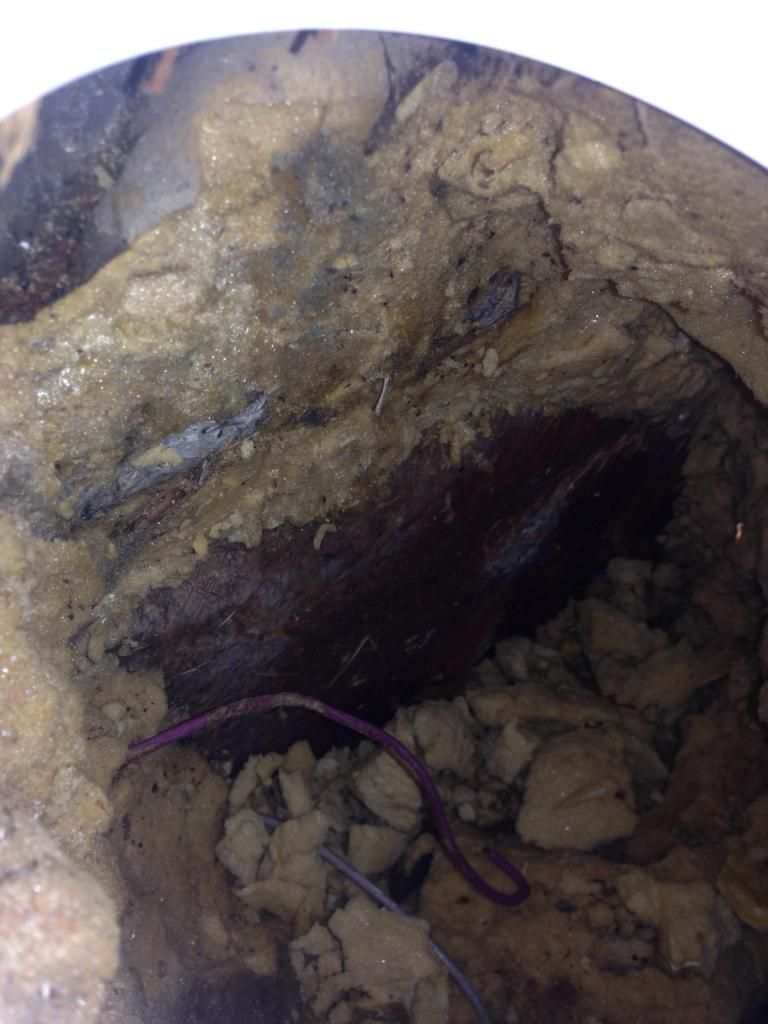

Ok, so got the PP taken off this afternoon. It seems like it just “tore” the glass on the bottom side of the mount. Better than ripping the whole thing off I guess. So, like I mentioned before, this is not wood or foam cored. The hull is about an 1/8" thick right here just fiberglass. The spot where they installed this was filled with foam, which they cut out to access the mounting points. So, to do this right, would it be best to cut this entire section of deck out to put proper bracing on the inside of the hull, or could you get some “backing” down in there to give the mount some backbone? 6" access hatch.
Larry, I’m going to call you tomorrow. This weekend and today has been nuts. Is there a good time to catch you on the phone?
j
17 Malibu CC
88 'rude
Ugly! Call any day, 9A-9P. If I don’t answer tools are running and I’ll call you back. That whole area needs to be cut out, a backing plate of 3/4 ply glassed to the inside, and the outside filled and faired back out. That transom was no way thick enough to support the stress of a Powerpole. An overlapping plywood plate on the inside would have worked fine.
Capt. Larry Teuton
Cracker Built Custom Boats
“Ships are the nearest things to dreams that hands have ever made.” -Robert N. Rose
do yourself a favor and get the fiberglass repaired, and DO NOT remount the powerpole to the transom
order the engine bracket and mount it to the bracket
www.teamcharlestonmarine.com
www.joinrfa.org
Holy crap Chris! Are these new? I would have never thought of that…
j
17 Malibu CC
88 'rude
No they are not new and they work great.
07 Scout Winyah Bay 221 Yamaha F150
