More pics from this weekend.

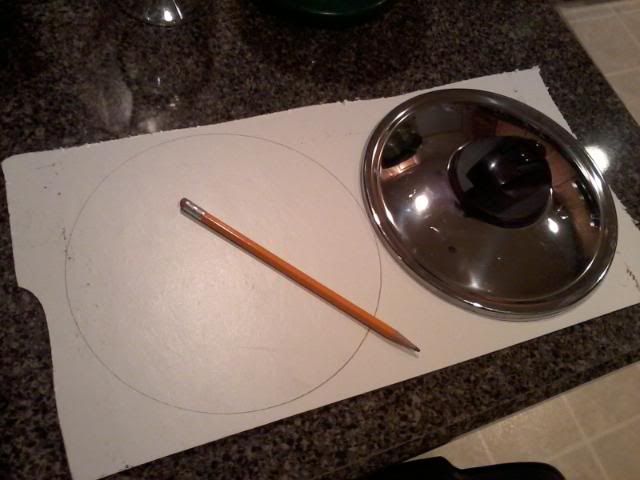

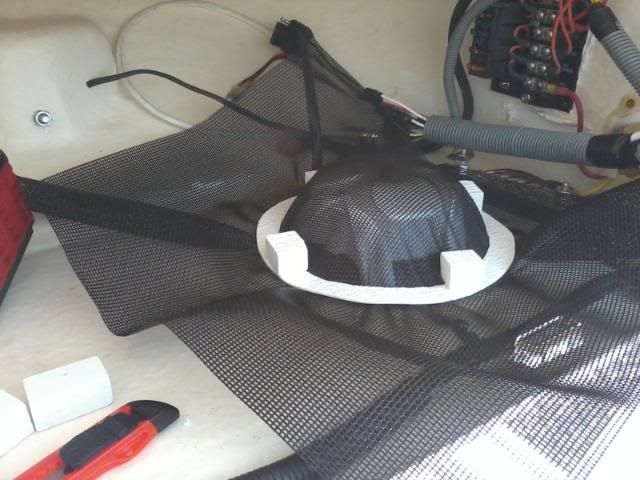

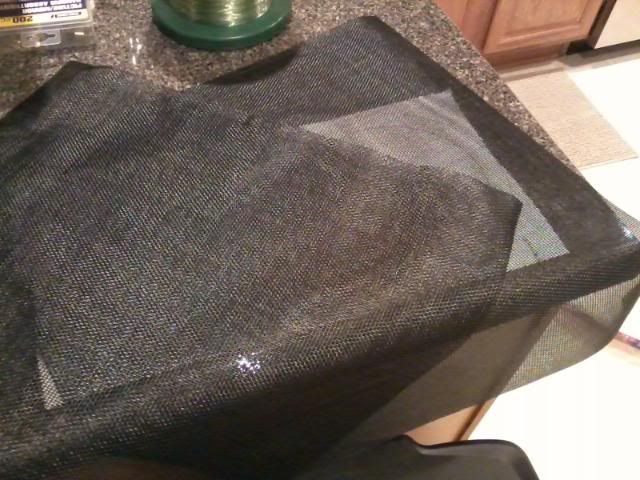

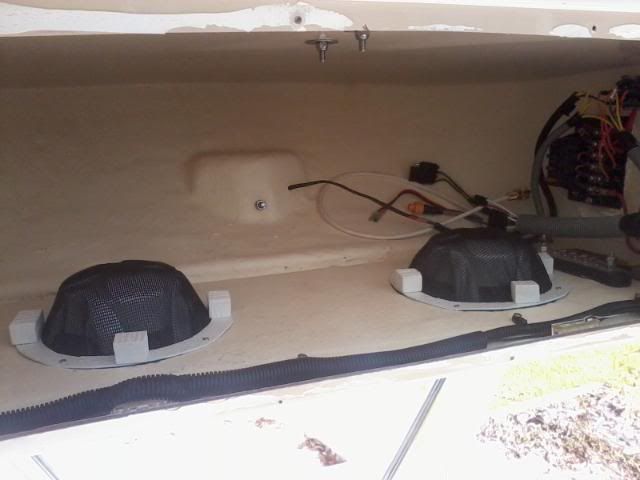

Nobody’s car keys or anything can fall into the backs of the speakers now…

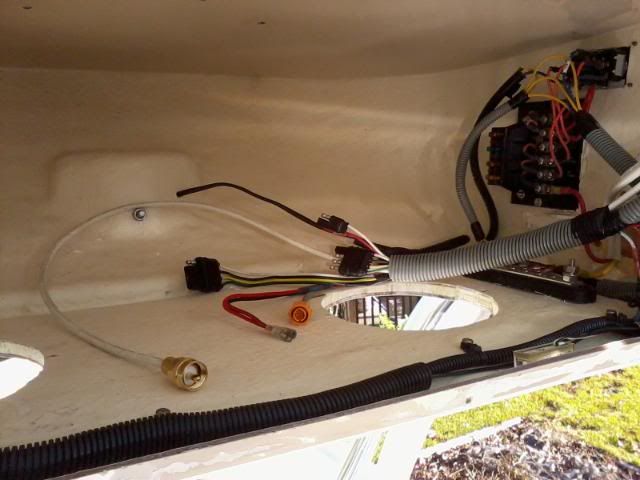

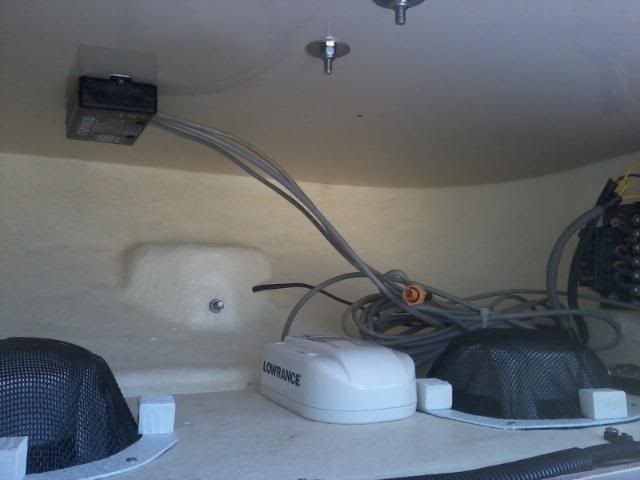

Sirius WX and radio module and junction box mounted out of the way.

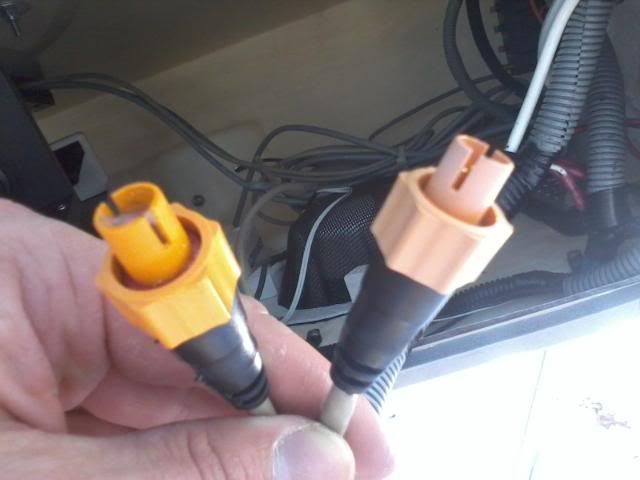

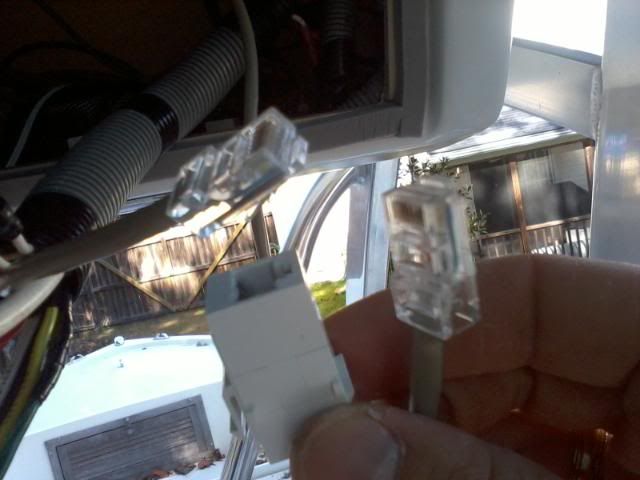

How do you make these couple?
Elapsed time… 30 minutes…

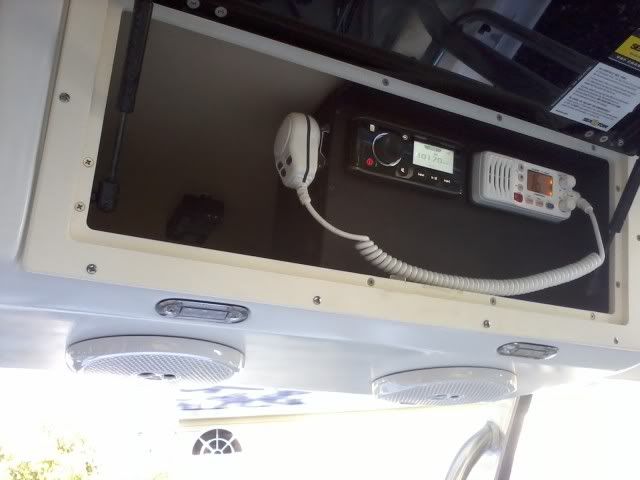

Done with the e box!

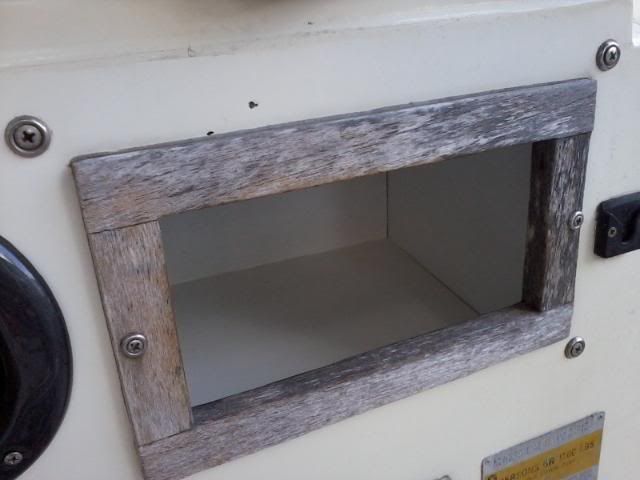

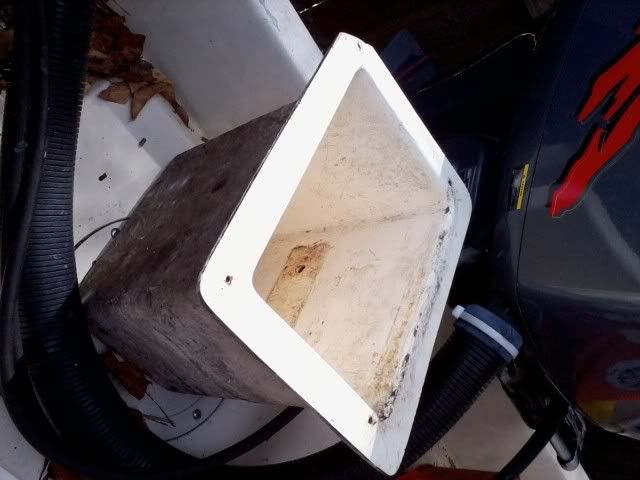

Old glove box

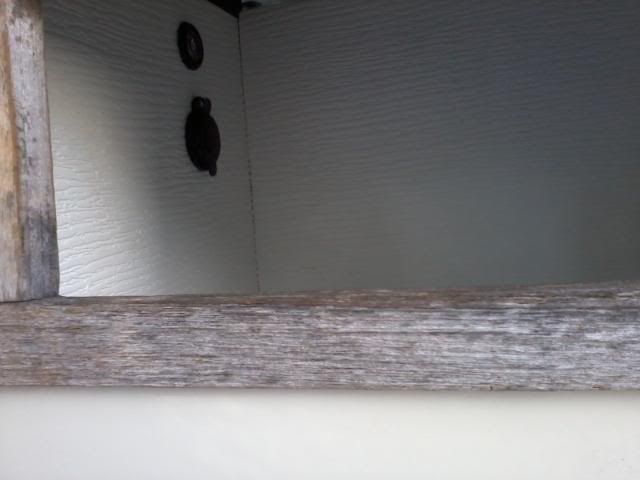

New glove box
With 12V plug and LED light for finding keys or wallet from among the koozies and such at night.

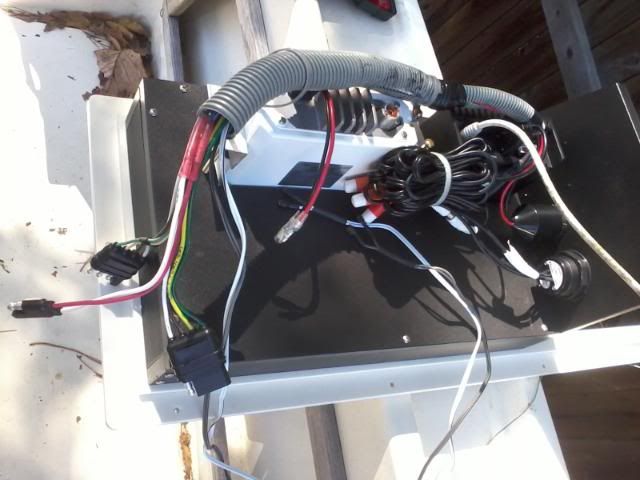

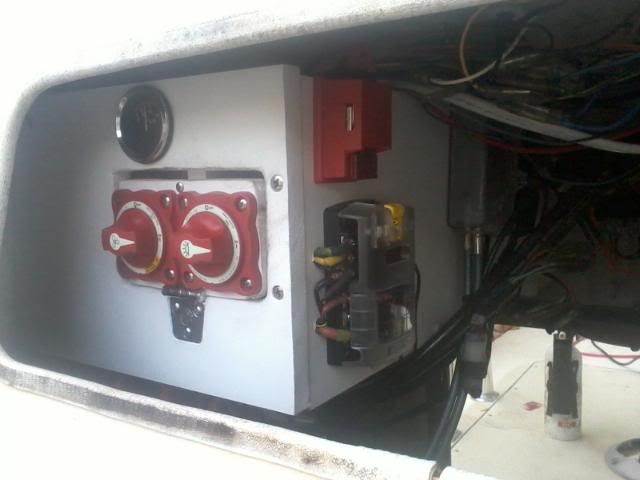

Electrical panel in progress…
[IMG]htt

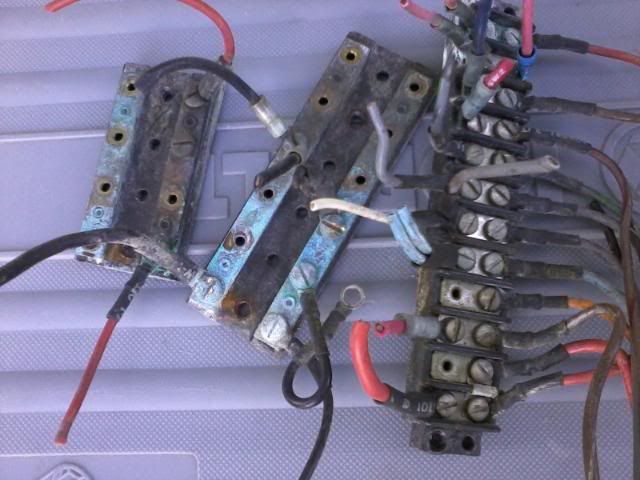

So this

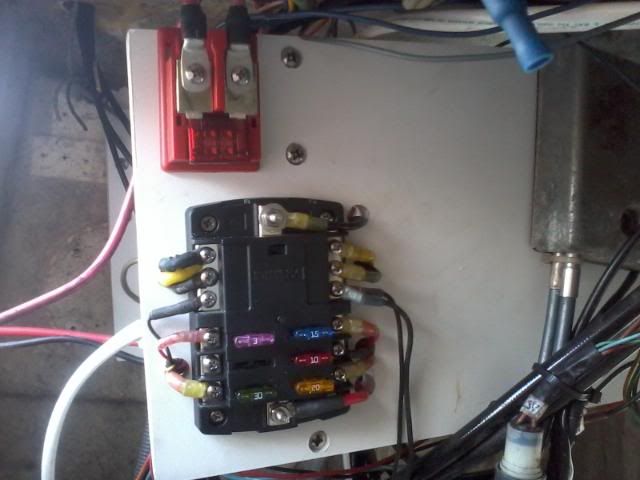

has now been replaced with this
And my starter and house circuits are now isolated as simple as this
More info http://old.charlestonfishing.com/forum/topic.asp?TOPIC_ID=106163
www.JoinRFA.org
Luke 8:22-25

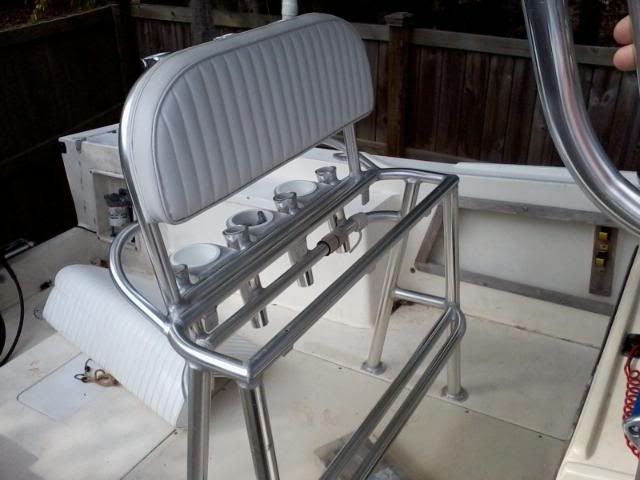

Making storage in the leaning post this week…

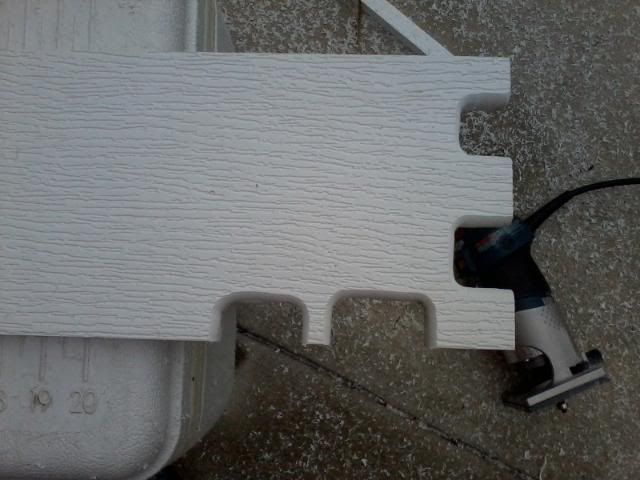

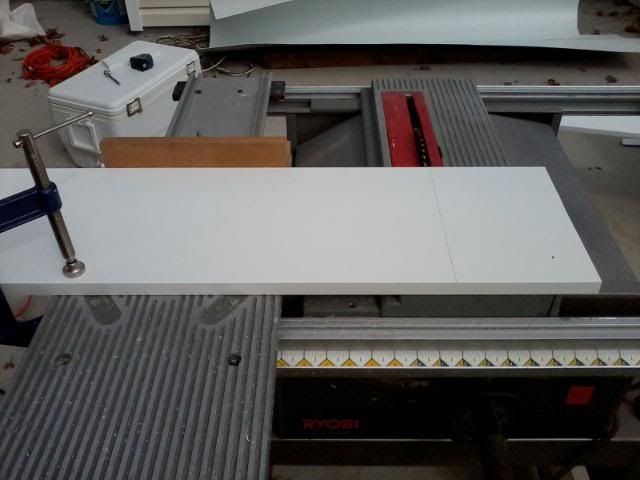

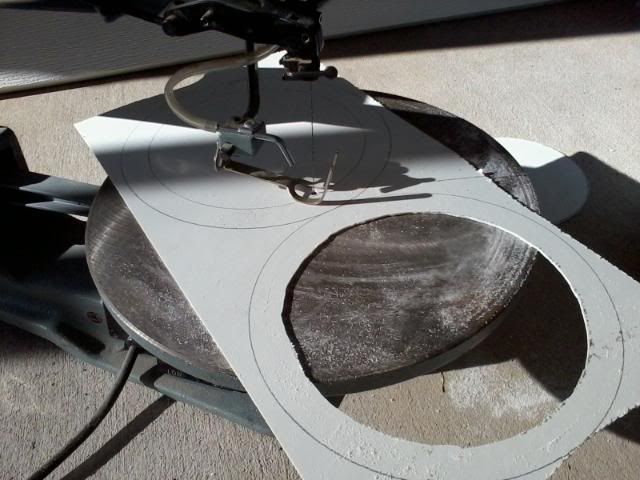

Table saw or skilsaw cuts pvc best. Scroll saw or jigsaw tends to be very slow if you don’t want it to melt and restick to itself behind the blade. Very easy to cut through- but it heats up and melts to itself quick. Router does well with it also.

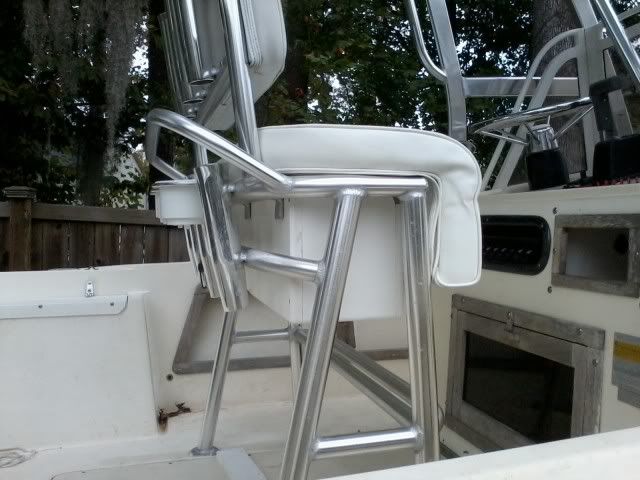

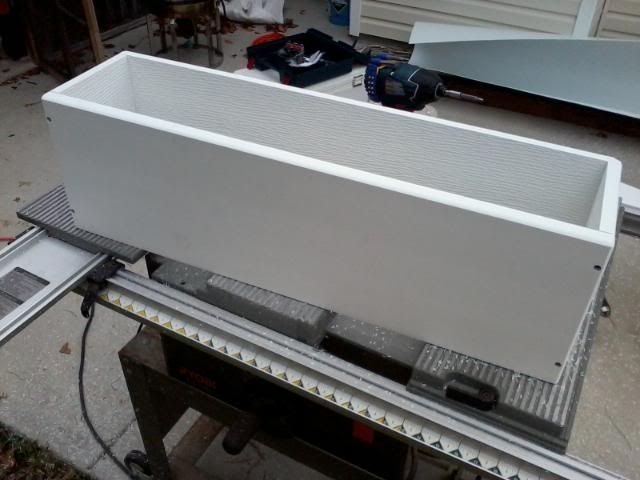

Got the outer shell of the box made.
Test fit
Going to make dividers for tackle and tool holders inside and out next.
www.JoinRFA.org
Luke 8:22-25
Very cool Wes, I’d love to come take a look at it in person and lend a hand if you need it. I’ve been thinking about doing the same thing! might take a bit longer as the money starts coming in but one day for sure.
Somebody told us Wall Street fell but we were so poor we couldn’t tell. Cotton was short and the weeds were tall but Mr. Obama gonna save us all
xHCFKx
It’s looking great, Wes!! excellent job!!
“Miss Amanda”
-KeyWest
-Bluewater 2020CC
-Yammy F-150
www.joinrfa.orgGod is GOOD!! ALL the time!!
The shortest distance between a problem and a solution is the distance between your knees and the floor.
The one who kneels to the Lord can stand up to anything.
</font id=“blue”>
Wow Phin. She sure has come a long way.
“Sometimes I think it’s a shame, when I start feelin better when I’m feelin no pain…”.
GW 205
F200 Yam
quote:
Originally posted by Phin
www.JoinRFA.org
Luke 8:22-25
What is this??
Set the trap boys, we going to pass through them again!!
Very nice,alot of planning went into this…

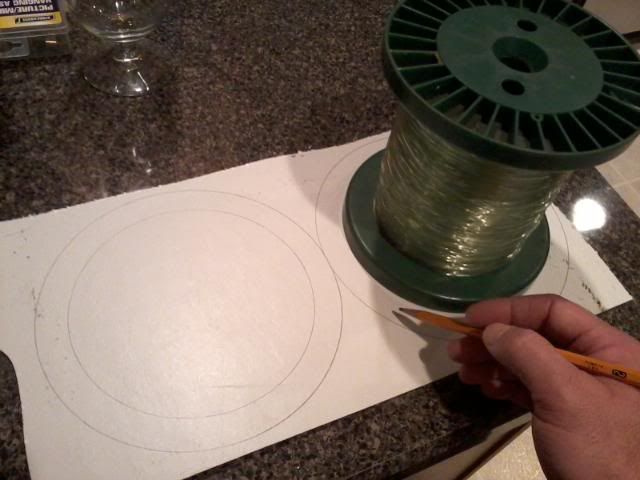

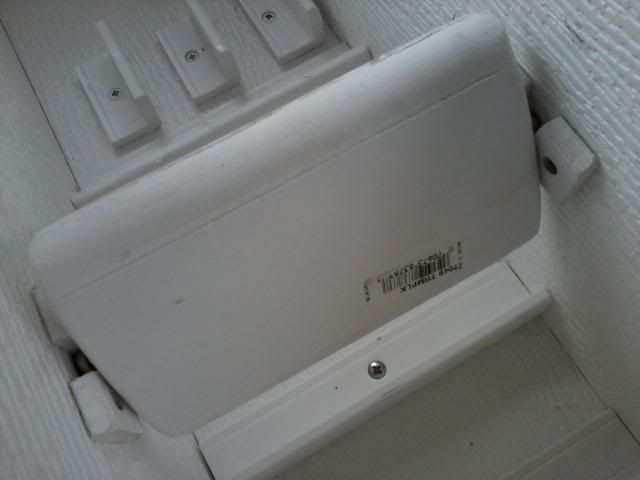

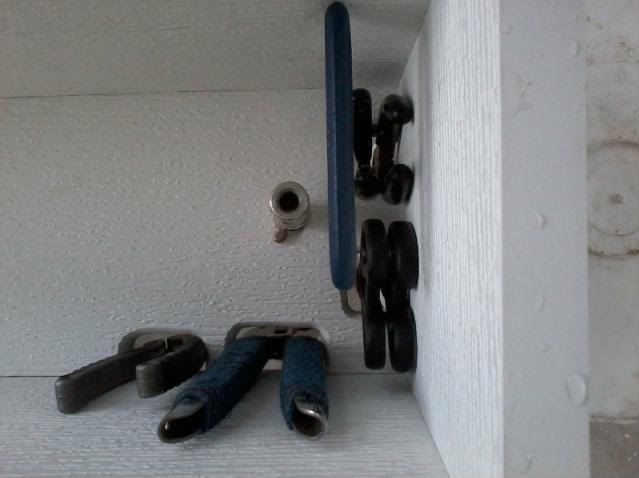

Scootin, that is the axle for the leader spools to spin on.
GW, you are right. I have plans for a bait/tool/rigging table and cooler slide under the leaning post too. Will have my yard completely mulched with white PVC snow before it’s over with.
About the time I get it looking like a legit shallow water grouper catching machine they’ll make it all illegal probably.
www.JoinRFA.org
Luke 8:22-25
quote:
Originally posted by PhinAbout the time I get it looking like a legit shallow water grouper catching machine they’ll make it all illegal probably.
www.JoinRFA.org
Luke 8:22-25
You can always put a ski pole on it for fun at the lake.
Set the trap boys, we going to pass through them again!!

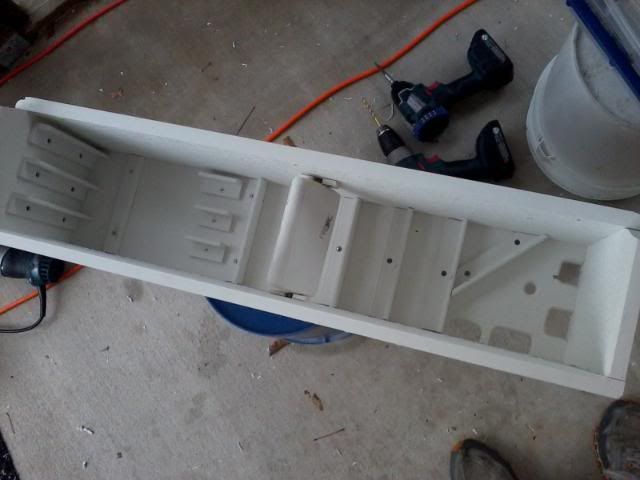

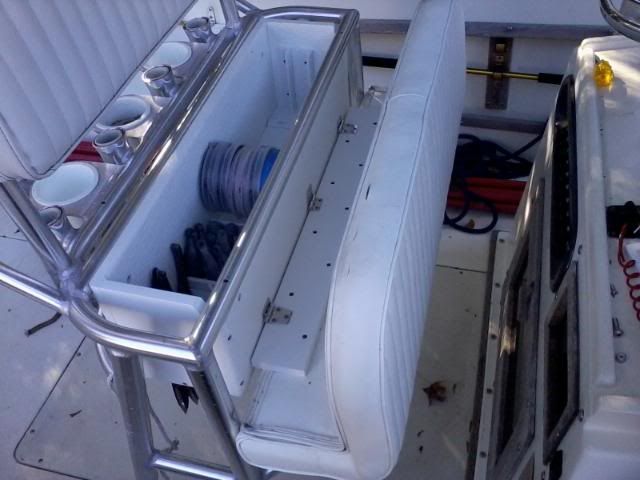

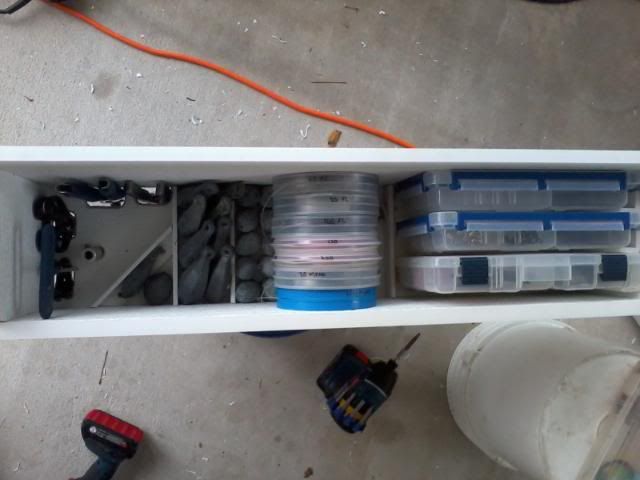

Leaning post storage done.
Don’t have the tackle boxes in this pic, but they go on the port side.

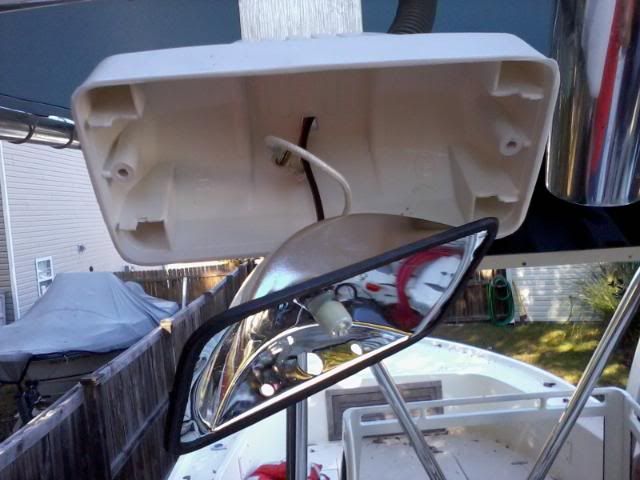

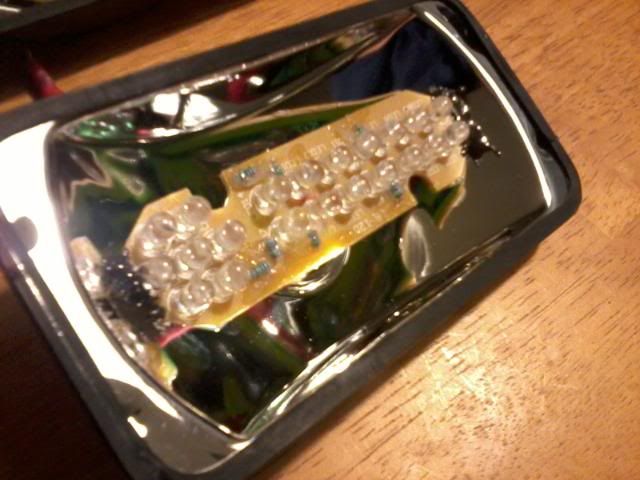

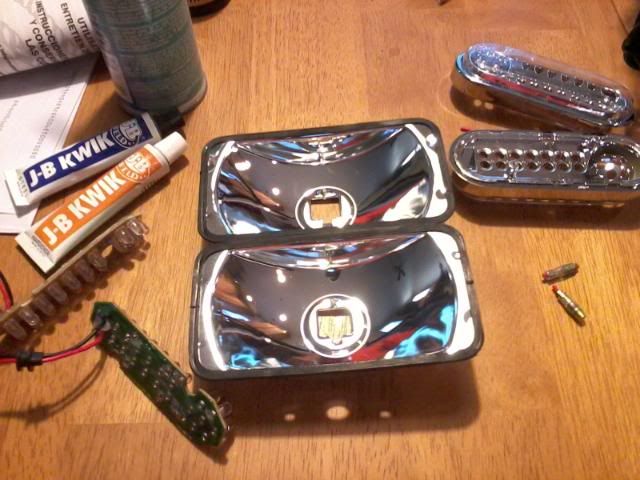

Changing the aft spreader lights over to LED by gluing the guts of some LED driving lights into the fixtures. Coated the PCB boards with dielectric grease to prevent corrosion. Didn’t get pics of the finished lights because it got dark.
www.JoinRFA.org
Luke 8:22-25
Where did you get the LED’s from?
Being superstitious is bad luck.
quote:
Originally posted by SCSuperflyWhere did you get the LED’s from?
Being superstitious is bad luck.
Advance - $20 driving lights. Take them out of the automotive plastic and steel cases and JB weld into your spreaders.
www.JoinRFA.org
Luke 8:22-25
Doing an awesome job. Boat is looking great
197 poineer F150
31 yellowfin twin 275
Phin, the boat looks awesome!!! Keep us posted (I’m hooked now, lol)
23’ Regulator
‘Big Tease’
•.¸¸.•´¯•.¸¸.•´¯•.¸ ><((((º>
quote:
Originally posted by GuyAPhin, the boat looks awesome!!! Keep us posted (I’m hooked now, lol)
23’ Regulator
‘Big Tease’•.¸¸.•´¯
•.¸¸.•´¯•.¸ ><((((º>
Signature was messed up. Fixed!
23’ Regulator
‘Big Tease’
…... ><((((>
where have you been getting all the different thickness and sizes of the pvc board? I’ve only ever found 1/4" thick sheets at west marine and they were expensive!
livin life
PVC board is different from what’s in west marine. That’s star board or sea board a.k.a. HDPE in west marine, and it is expensive anywhere. Plastic suppliers can sell it for about 60% of what WM sells it for though. The black flush panel in my e box is star board.

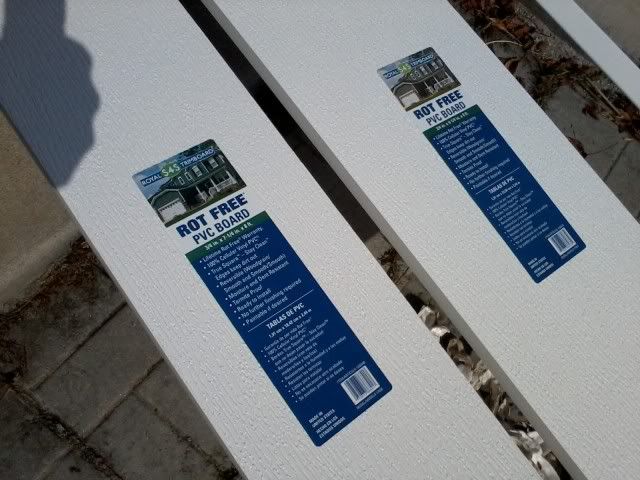

PVC is a lot less dense and lighter that star board / sea board. That’s the white stuff that I made the leaning post storage out of. PVC is okay for stuff out of the sun and elements on the boat, but it can hold up fine as it’s made for exterior use on houses, etc… It is in Lowes where the exterior trim is. For different thicknesses, you have to go to a plastics supplier. There is a place in Columbia on Shop Rd. I have gotten stuff from before. In Charleston you can get it from a supplier or a sign shop if you need sheets or something other than what’s in Lowes.

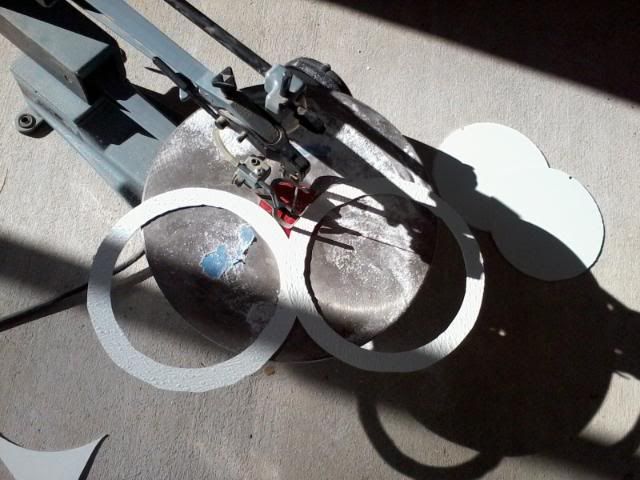

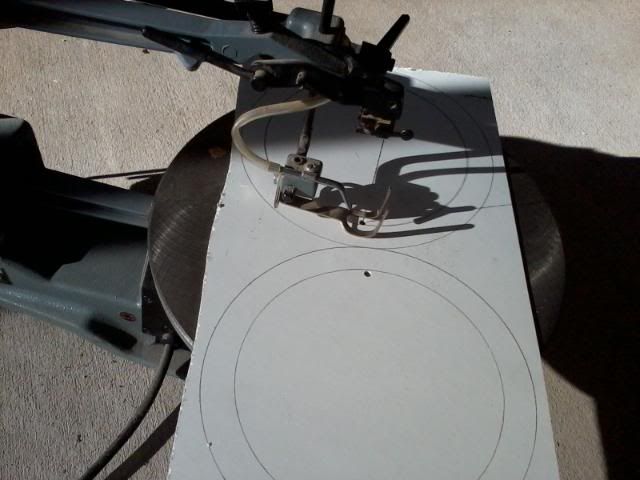

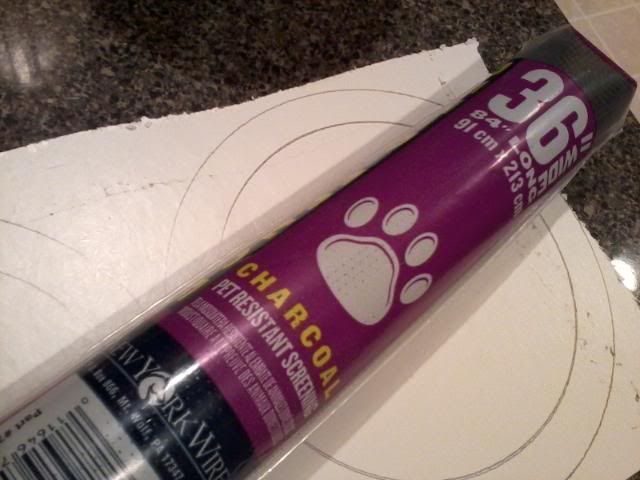

The thin stuff I made the speaker backing rings out of is FRP (fiberglass reinforced panel)- also in Lowes. It is used in bathrooms for tub surrounds, etc. It comes in 4x8’ sheets.
www.JoinRFA.org
Luke 8:22-25
I use Piedmont plastics here in the upstate. They have an office in Columbia as well as others across the country.
http://www.piedmontplastics.com/
They will sell what ever size and thickness you want. You can buy a 4x8sheet if you like. Cuts and finishes just like wood.
Greenville
25 BROOKFIELD OAKS DRIVE, SUITE A
Greenville, SC 29607
Toll Free: 800-768-7898
Phone: 864-288-7201
Ask for Rodger tell him Scott sent you.
